Beveling Machines (3)

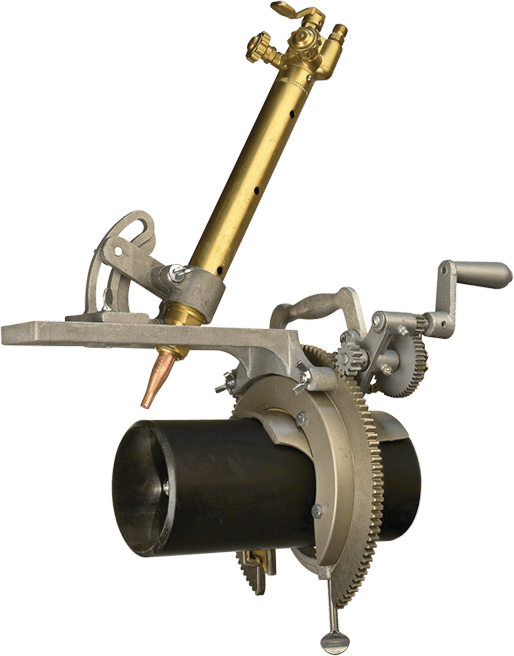

Mathey Dearman MSA Beveling Machine for 1.5" - 4" Pipe Item Details Mathey Dearman MSA Manual Saddle Machine Pipe Beveller for 1 1/2"- 4" pipe and is ideal for beveling equipment. Features The light compact unit is an excellent tool for shop or field applications he spacer bolts, located on both sides of saddle, give the machine the accuracy required when cut quality and accuracy is critical Requires little or no operator skill or training to set up and achieve an accurate cut The saddle, ring gear and cap ring are made of aluminum that is hard anodized to maintain accuracy and provide long-lasting durability Can be used with oxy/fuel or plasma machine torch with 1 3/8" barrel diameter Built to withstand the construction, fabrication and welding jobsite environment Up to 80% faster than hand cutting and grinding MSA Saddle Machine is designed to rotate a 1 3/8”/35mm diameter 12” long oxy/fuel or plasma machine torch to cut and/or bevel 2” / 50.8, 3”/76.2mm and 4”/101.6mm horizontal or vertical nominal size API line pipe. The machine comes with Spacers for 2” / 50.8 and 3”/76.2mm pipe. The saddle is placed on the pipe without spacers for cutting 4”/101.6mm. Spacers are available for other pipe or tubing sizes within the machine cutting range. Includes Base Machine Torch Arm Torch Carrier Assembly Parts and Operating Manual Applications Industrial Product Attributes Product Type Pipe Beveling Machine Trade Name MSA Pipe Size 1 1/2" - 4" Speed 141 IPM Manual  Usage Instructions. Place the MSA Machine Saddle squarely on the pipe, as close as possible to the cut line. The front and back spacers should make full contact on the pipe. 4.2 Place the Eye of the Boomer Assembly (Figure 2 item 2) over 1/4-20 x ¼” Socket Head Cap Screw (Figure 4 item 9) located on the Saddle (Figure 4 Item 1). 4.3 Tighten the Thumb Screw (Figure 2 Item 3) of the Boomer Assembly (Figure 2) to secure the machine to the pipe. Equip your Mathey Dearman MSA Saddle Machine with the Victor Short Barrel Torch today at Weld Shop Supply.

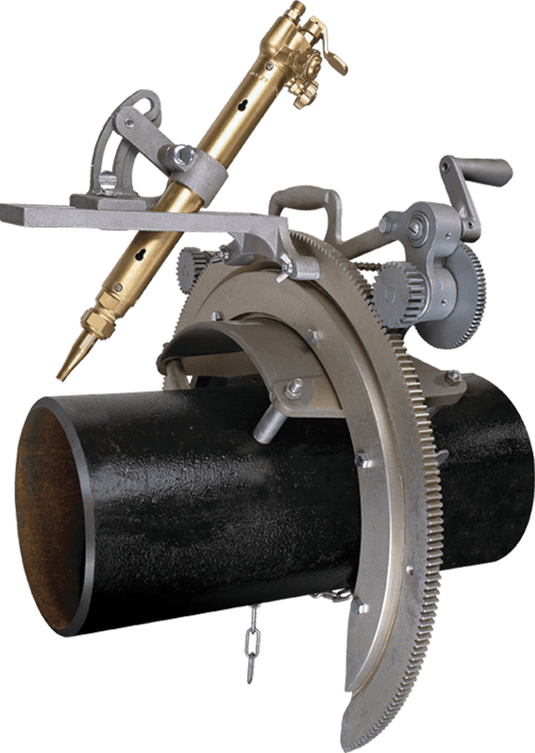

Mathey Dearman 1SA Pipe Beveling Machine for 3" - 8" Pipe Item Details Mathey Dearman 1SA Manual Saddle Machine Pipe Beveller for 3" - 8" pipe features lightweight compact design and can be used with oxy/fuel or plasma machine torch with 1 3/8" barrel diameter. It includes base machine, fully adjustable torch arm, torch carrier assembly for mounting of torch arm, spacer bolts or step spacers are required to mount the machine to different pipe sizes, parts and operating manual. It is specifically designed for critical pipe applications that require a high degree of cut quality and accuracy. Features The light compact unit is an excellent tool for shop or field applications he spacer bolts, located on both sides of saddle, give the machine the accuracy required when cut quality and accuracy is critical Requires little or no operator skill or training to set up and achieve an accurate cut The saddle, ring gear and cap ring are made of aluminum that is hard anodized to maintain accuracy and provide long-lasting durability Can be used with oxy/fuel or plasma machine torch with 1 3/8" barrel diameter Built to withstand the construction, fabrication and welding jobsite environment Up to 80% faster than hand cutting and grinding Includes Base Machine Torch Arm Torch Carrier Assembly Parts and Operating Manual Applications Industrial Product Attributes Product Type Pipe Beveling Machine Model 1SA Pipe Size 3" - 8" Speed 71 IPM Operators Manual Place the 1SA Saddle Machine squarely on the pipe, as close as possible to the cut line. All 4 spacer bolts or step spacers should contact the pipe. Place the hook of the Boomer into the Boomer Eye on the Saddle . Place the Spring Snap into the Boomer Eye on the other side of the Saddle. In order to get a stable installation of the Saddle Machine, the Chain of the Boomer Assembly must be adjusted on the Spring Snap so that the spring is stretched approximately 1/2" -3/4” (12 - 19mm) when the Boomer is closed. Pair the Mathey Dearman 1SA With a Victor Barrel Torch today at Weld Shop Supply.

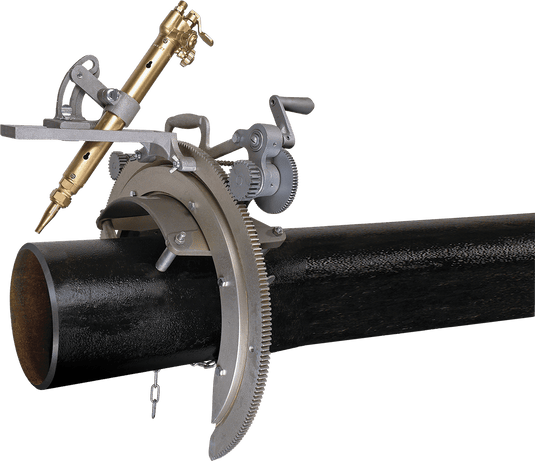

DescriptionItem DetailsMathey Dearman 2SA Manual Saddle Machine Assembly with spacer bolts is designed for critical pipe applications that need a high degree of cut quality and accuracy. Portable machine is best suited for shop or field applications. It has spacer bolts at both sides of saddle that renders the accuracy required when cut quality and accuracy is critical. Manual saddle machine featured with ring gear and cap rings are made of robust aluminum material that is hard anodized to maintain accuracy and to render long lasting durability. One-piece saddle pattern protects machine by providing immense resistance to stress and warping. It offers guaranteed performance with oxy/fuel or plasma machine torch with 1 3/8" barrel diameter. Beveling machine with up to 80% faster production than hand cutting and grinding finds wide range os application in the construction, fabrication and welding jobsite industry. Machine assembly includes base machine, fully adjustable torch arm, torch carrier assembly for mounting of torch arm and spacer bolts for mounting.Features The light compact unit is an excellent tool for shop or field applications he spacer bolts, located on both sides of saddle, give the machine the accuracy required when cut quality and accuracy is critical Requires little or no operator skill or training to set up and achieve an accurate cut The saddle, ring gear and cap ring are made of aluminum that is hard anodized to maintain accuracy and provide long-lasting durability Can be used with oxy/fuel or plasma machine torch with 1 3/8" barrel diameter Built to withstand the construction, fabrication and welding jobsite environment Up to 80% faster than hand cutting and grinding Includes Base Machine Torch Arm Torch Carrier Assembly Parts and Operating Manual ApplicationsIndustrialProduct AttributesProduct Type Pipe Beveling MachineModel 2SAMaterial Cast AluminumPipe Size 6" - 12"Speed 89 RPM
